The Collet Router
A New Innovation In Woodworking
The Shaw Collet Router is a new type of woodworking machine developed in New Zealand as a collaboration between master woodworker John Shaw and woodworking equipment manufacturer Compakto.
The Collet Router combines the best features of a spindle moulder and a router table into one user-friendly, accurate and highly versatile woodworking machine. A key innovation is the precision joystick control of the cutter both vertically and horizontally.
Features & Benefits

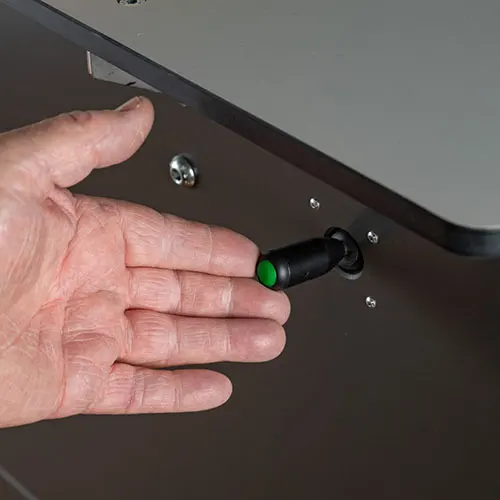

Joystick two axis control
The joystick controls the spindle both vertically and horizontally. It can be switched between rapid and fine movements

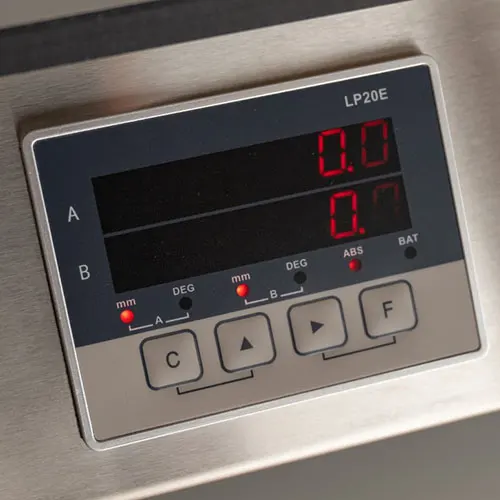

Digital readout
A digital readout displays the cutter position with an accuracy of 0.1mm.

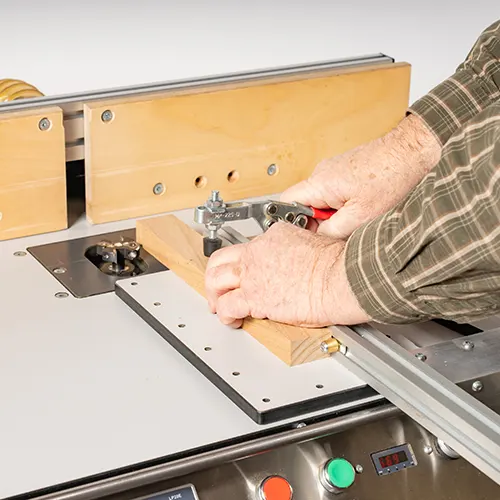

Sliding table
A flexible sliding table can be quickly installed to add even more capability.

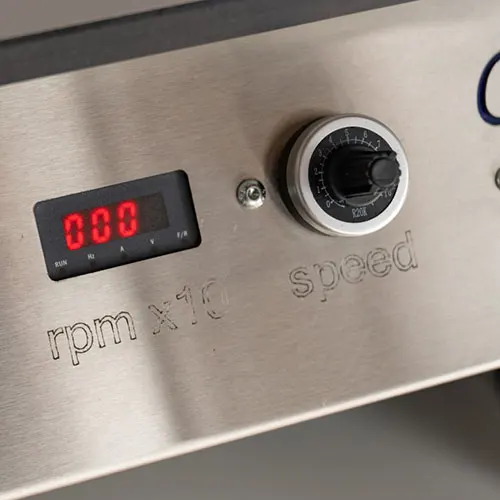

Precision
Fine tune the cutter speed for precise, clean and burn free cuts

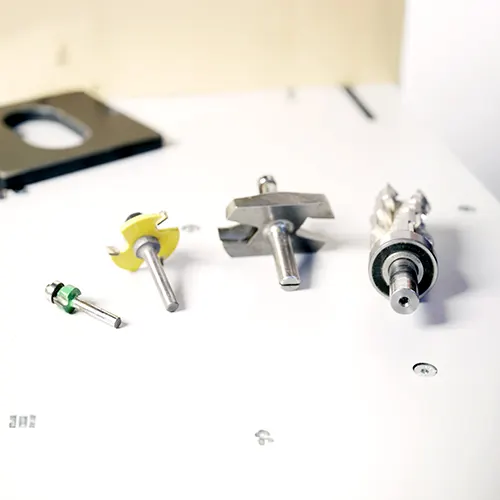

Flexible cutter options
The universal ER25 collet system allows use of all styles of router and CNC cutters up to 16mm shank diameter

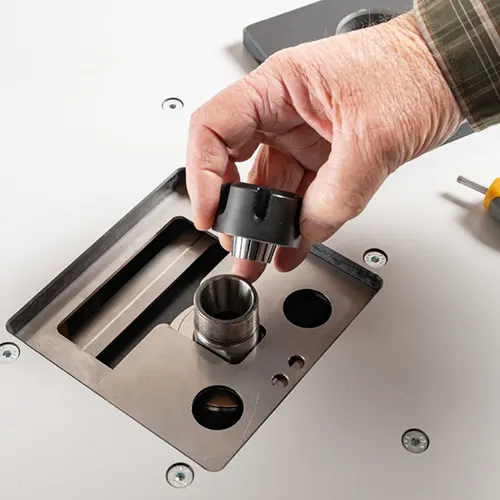

Easy cutter change
Rapid and simple above-table cutter change

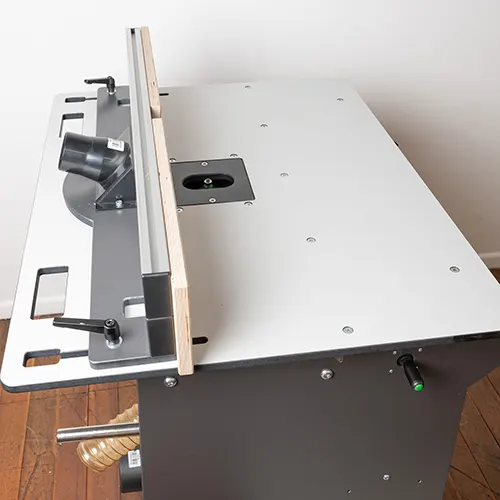

Rapid adjustments
The adjustment of fence to cutter position is achieved quickly using a combination of fence movement and fine joystick control

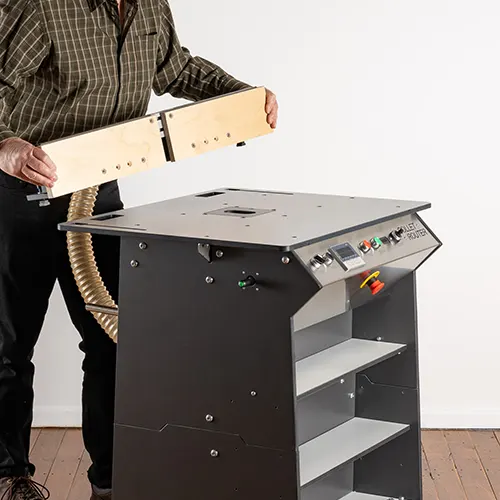

Removable fence
The fence position can be easily and quickly adjusted or removed entirely and stored at rear of machine

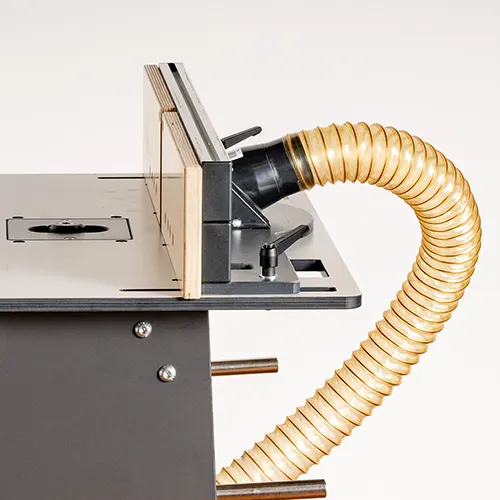

Dust extraction
Integrated dust extraction via fence and table ensures clean and tidy operation

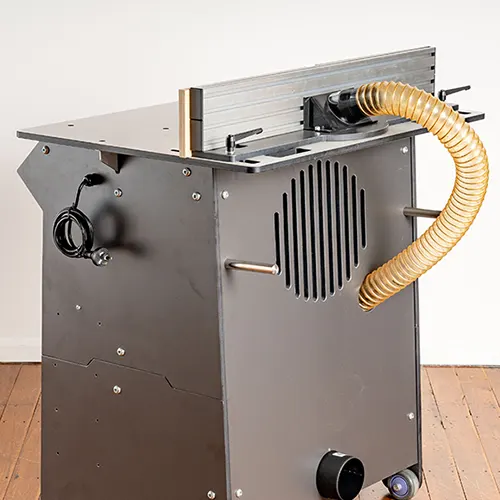

Quiet operation
The Shaw Collet Router works with low operating noise and very low vibration

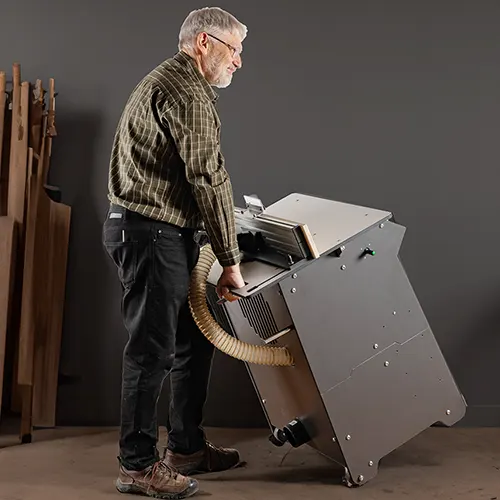

Easily moved
Built in wheels makes it easy to move around the workshop

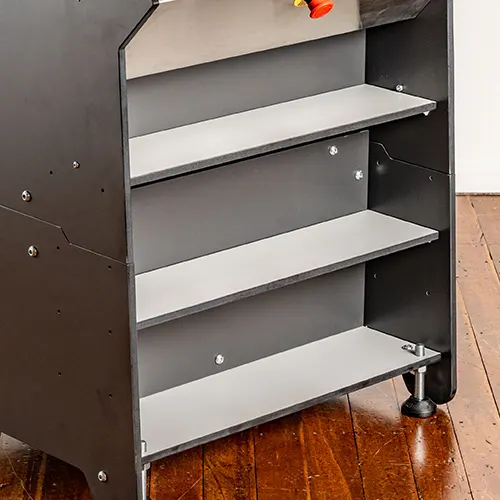

Storage
Store all your router tools and accessories in the built-in shelving

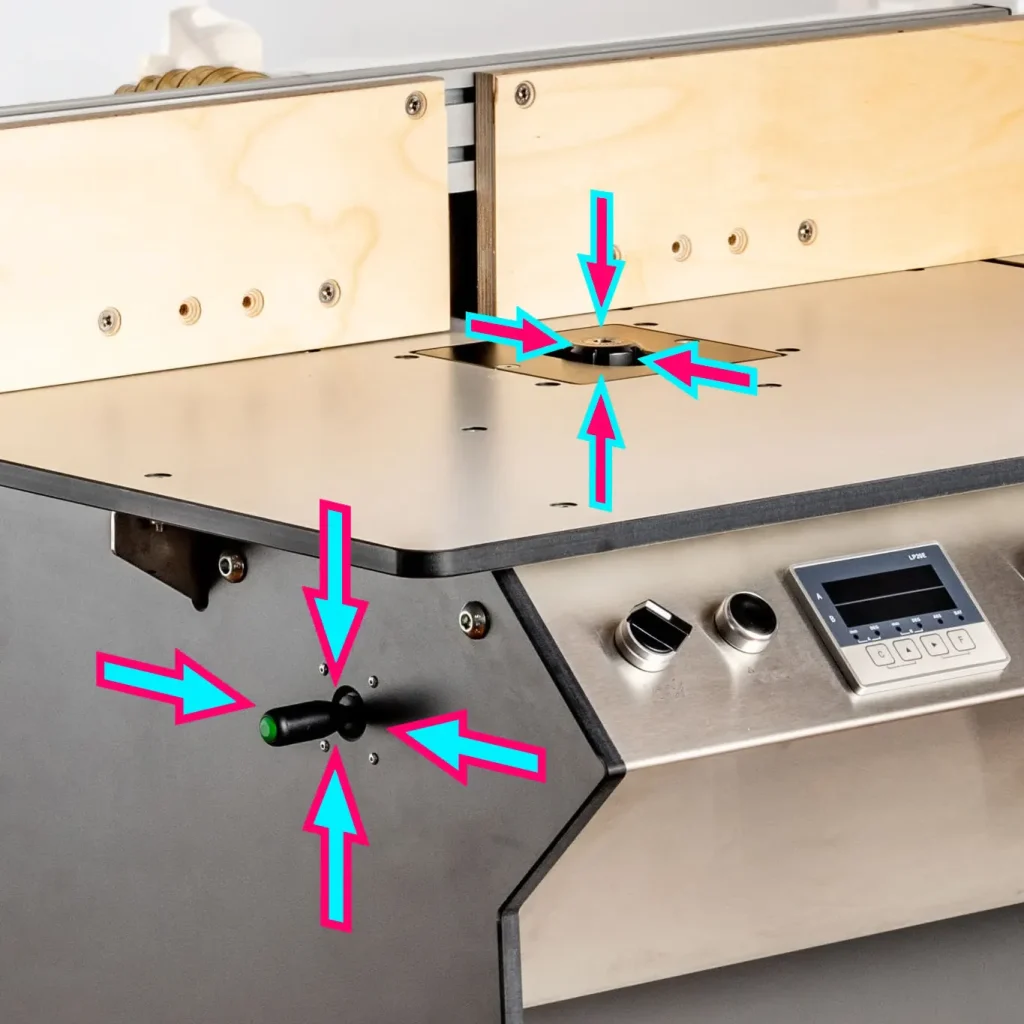

Innovative Two Axis Joystick Control
The incremental movement precision of the joystick control beats even the most sophisticated Spindle Moulder.
One joystick controls movement in both directions.
Change between rapid and fine movements at the touch of a button.
Fine adjustments of 0.1 mm can be made both vertically and horizontally, and the settings are clearly displayed on the readout.
Control panel run through
Changing the cutter
Specifications
| Table size | 820 mm × 640 mm |
| Height | 900 mm |
| Maximum fence movement (Y axis) | 175 mm |
| Collet Router movement vertical (X axis) | 100 mm |
| Collet Router movement horizontal (Y axis) | 30 mm |
| Read out resolution | 0.1 mm |
Router Spindle
| Power | 2.2 kW (3 BHP) |
| Max RPM | 18000 |
| Min usable RPM | 1500 |
| Collet type | ER25 |
| Max collet size | 16 mm |
| Max recommended tool diameter | 70 mm |
Electrical
| Input voltage | 220V–240V single-phase |
| Frequency | 50–60 Hz |
| Max current drawn | 9 A |
| Internal control voltage | 24V DC |
Extraction
| Diameter | 100 mm |
| Min air speed | 25 m/s |
Contact Us for Pricing & Ordering
Contact us to enquire about ordering or arrange a demo
